SDKExample, Godot, GDScript

Introduction

This example uses SDK and GDScript

The current example demonstrates interaction between GDScript, Netty, WebSocket, Protobuf, and the game server.

This example mainly demonstrates the following aspects

1. SDK + code generation = many advantages.
2. Interacting with the server using generated interface files (action, broadcast).
3. Heartbeat handling, where each heartbeat synchronizes time with the server.
4. Interaction demonstrations include:
   • Protocol Fragment: parameter and return values of "basic types".
   • Parameter and return values of List types.
   • Parameter and return values of Protobuf object types.

In the example directory ./gen/code, interaction interface files such as action, broadcast, error codes are generated by ionet. Code generation can significantly reduce workload for client developers and hide concepts such as routing from them.

Several Advantages of SDK Code Generation

1. Greatly reduces client-side workload and eliminates large amounts of template code.
2. Clear semantics. Generated interaction code clearly defines parameter types and whether the server returns values, and this is explicit at generation time.
3. Clear interaction interfaces ensure type-safe and explicit method parameters, so potential issues can be found at compile time. This approach effectively avoids safety risks and reduces low-level mistakes during integration.
4. Reduces communication cost between client and server teams. Code is documentation. Generated integration code includes docs and usage examples, enabling even beginners to reach zero learning cost.
5. Helps client developers abstract server interaction details so they can focus more on real business logic.
6. Reduces cognitive load in integration. Integration code is simple and as smooth as local method calls.
7. Replaces traditional protocol-oriented integration with an interface-method-oriented integration style.
8. Once Java code is completed, docs and interaction interfaces are updated in sync, without extra time spent maintaining integration docs.

Example Source Code

see https://github.com/iohao/ioGameSdkGDScriptExampleGodot

Quick Start

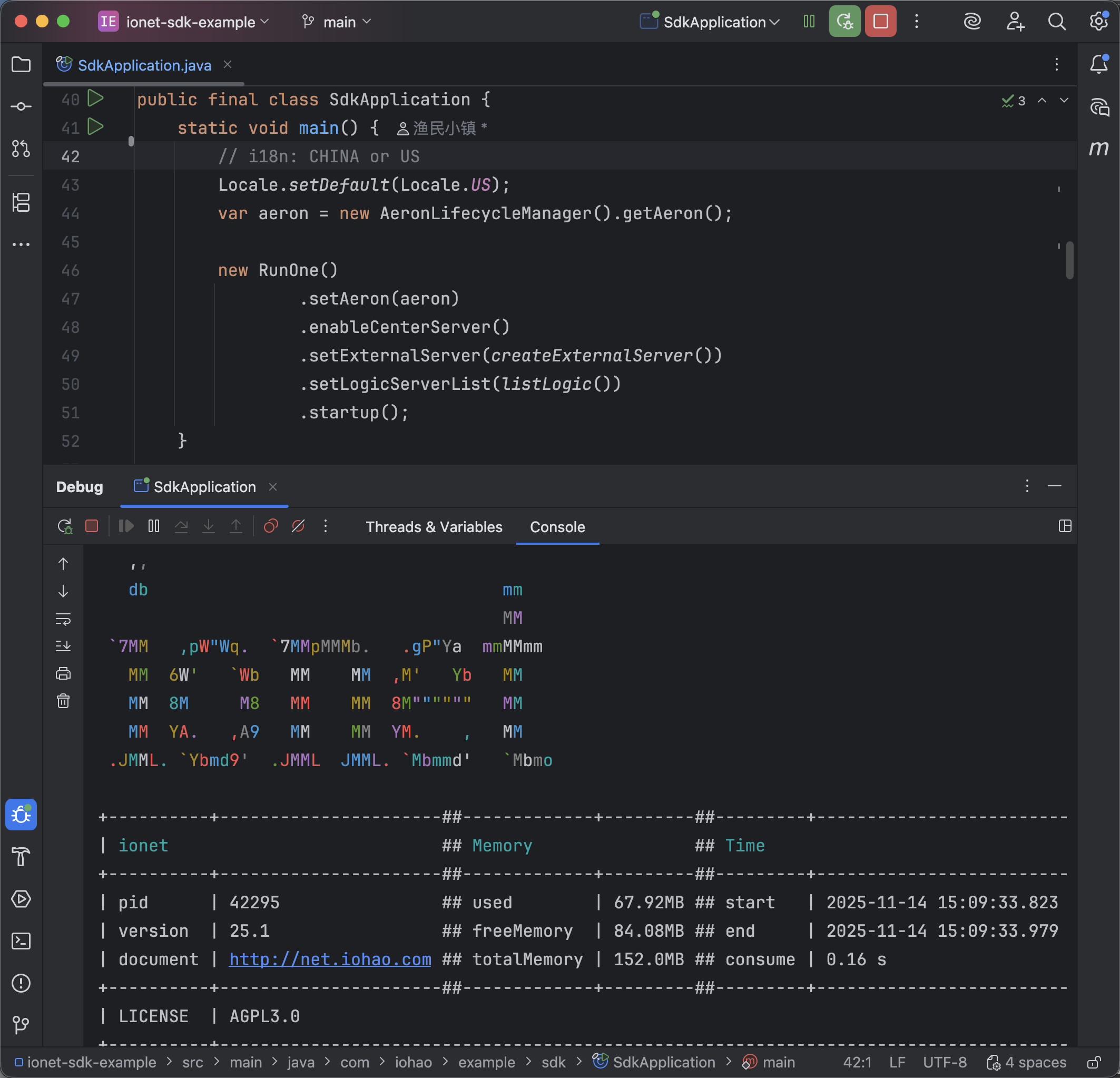

Start the Game Server

see https://github.com/iohao/ionet-examples

path : ionet-sdk-example

• SdkApplication

Install SDK

The current example project already has the required environment installed. For a new project, please install SDK, GDScript

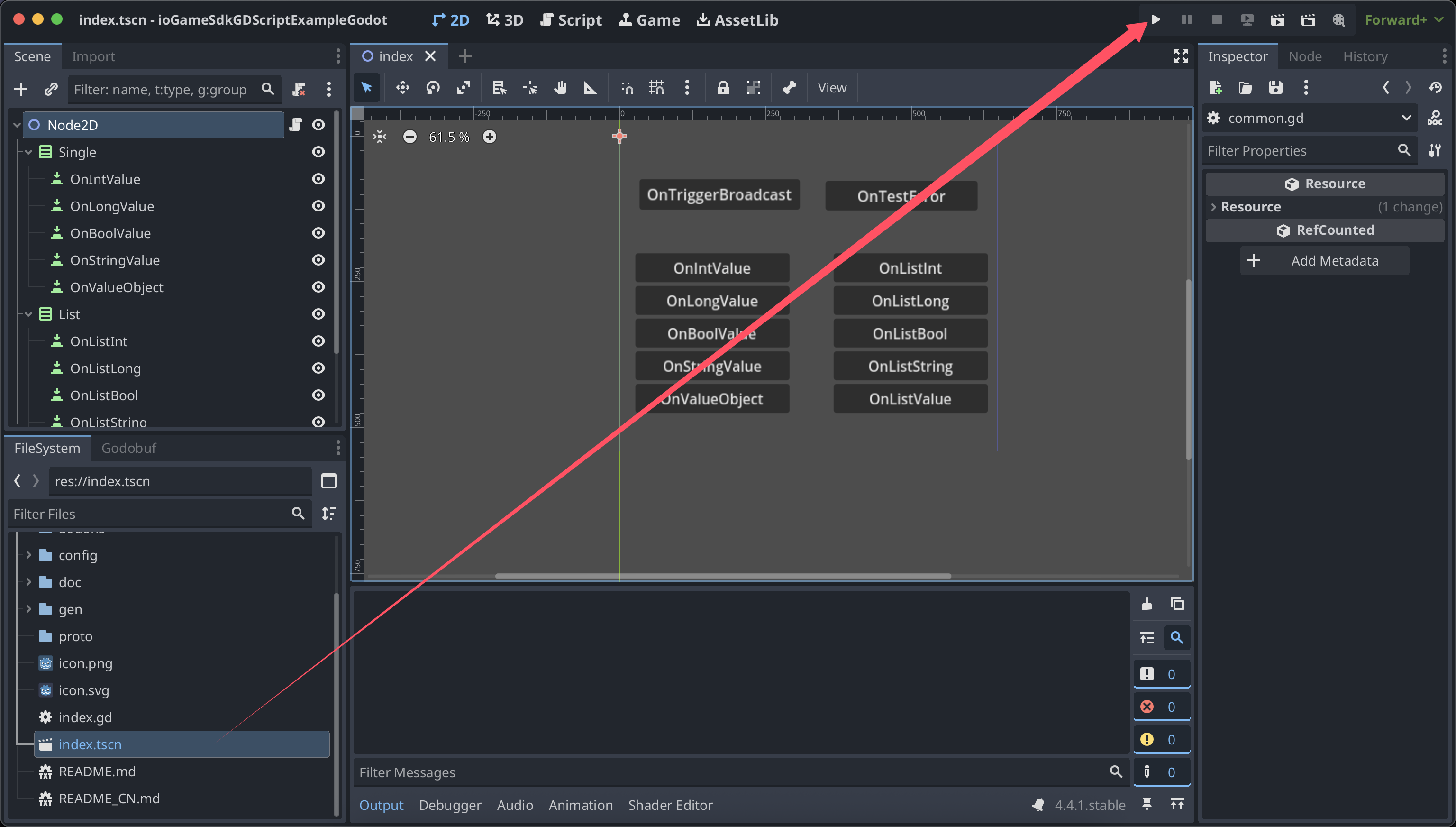

Launch Godot

Godot Version: 4.4.1

Test

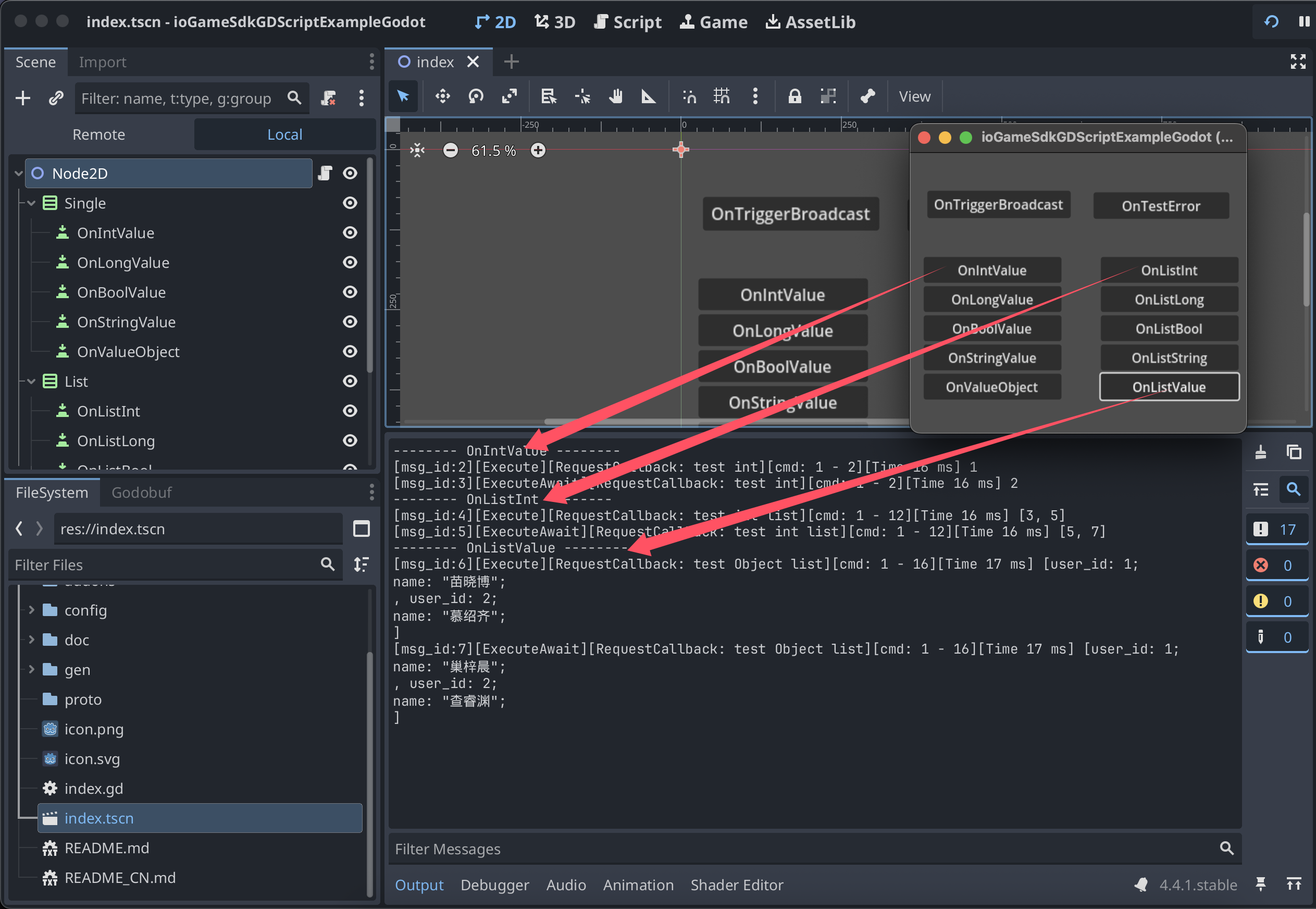

Click the button to send requests to the server and receive response data.

SDK Setup Instructions

my_net_config.gd file, this config file does the following:

1. Load error code and broadcast listener related modules.
2. IoGameSetting.listen_message_callback: custom message listener.
3. socket_init(): network implementation configuration and login.
4. IoGameSetting.start_net: start ioGame SDK.

class_name MyNetConfig
extends RefCounted

static var _socket: MyNetChannel = MyNetChannel.new()
static var current_time_millis: int = 0

static func start_net():
    # biz code init
    GameCode.init()
    Listener.listener_all()

    # --------- IoGameSetting ---------
    var setting := IoGame.IoGameSetting
    setting.enable_dev_mode = true
    setting.set_language(IoGame.IoGameLanguage.Us)
    # message callback. cn: 回调监听
    setting.listen_message_callback = MyListenMessageCallback.new()
    # set socket. cn: 设置网络连接
    setting.net_channel = _socket

    socket_init()
    setting.start_net()


static func poll():
    _socket.poll()

const Common = preload("res://gen/common.gd")

static func socket_init():
    _socket.on_open = func():
        var verify_message := Common.LoginVerifyMessage.new()
        verify_message.set_jwt("1")

        SdkAction.of_login_verify(verify_message, func(result: IoGame.ResponseResult):
                var value := result.get_value(Common.UserMessage) as Common.UserMessage
                print("user: ", value)
        )


static var _heartbeat_message_bytes := IoGame.Proto.ExternalMessage.new().to_bytes()
static var _heartbeat_counter: int = 1

static func send_idle() -> void:
    _heartbeat_counter += 1
    #print("-------- ..HeartbeatMessage {%s}" % [_heartbeat_counter])
    IoGame.IoGameSetting.net_channel.write_and_flush_byte(_heartbeat_message_bytes)


class MyListenMessageCallback extends IoGame.ListenMessageCallback:
    func on_idle_callback(message: Proto.ExternalMessage):
        var data_bytes := message.get_data()
        var long_value := IoGame.Proto.LongValue.new()
        long_value.from_bytes(data_bytes)
        # Synchronize the time of each heartbeat with that of the server.
        # cn: 每次心跳与服务器的时间同步
        MyNetConfig.current_time_millis = long_value.get_value()


class MyNetChannel extends IoGame.SimpleNetChannel:
    var _last_state: WebSocketPeer.State = WebSocketPeer.State.STATE_CLOSED
    var _socket: WebSocketPeer = WebSocketPeer.new()
    var _url: String = "ws://127.0.0.1:10100/websocket"

    var on_open: Callable = func():
        print("on_open")

    var on_connecting: Callable = func():
        print("on_connecting")

    var on_connect_error: Callable = func(error: int):
        print("on_connect_error:", error)

    var on_closing: Callable = func():
        print("on_closing")

    var on_closed: Callable = func():
        print("on_closed")

    func prepare() -> void:
        if _url == null or _url.is_empty():
            _url = IoGame.IoGameSetting.url

        var error: int = _socket.connect_to_url(_url)

        if error != 0:
            on_connect_error.call(error)
            return

        _last_state = _socket.get_ready_state()


    func write_and_flush_byte(bytes: PackedByteArray) -> void:
        _socket.send(bytes)


    func poll() -> void:
        if _socket.get_ready_state() != WebSocketPeer.State.STATE_CLOSED:
            _socket.poll()

        while _socket.get_available_packet_count() > 0:
            var packet := _socket.get_packet()
            var message := IoGame.Proto.ExternalMessage.new()
            message.from_bytes(packet)
            self.accept_message(message)

        var state: WebSocketPeer.State = _socket.get_ready_state()
        if _last_state == state:
            return

        _last_state = state

        match state:
            WebSocketPeer.State.STATE_OPEN:
                on_open.call()
            WebSocketPeer.State.STATE_CONNECTING:
                on_connecting.call()
            WebSocketPeer.State.STATE_CLOSING:
                on_closing.call()
            WebSocketPeer.State.STATE_CLOSED:
                on_closed.call()
            _:
                printerr("Socket Unknown Status.")

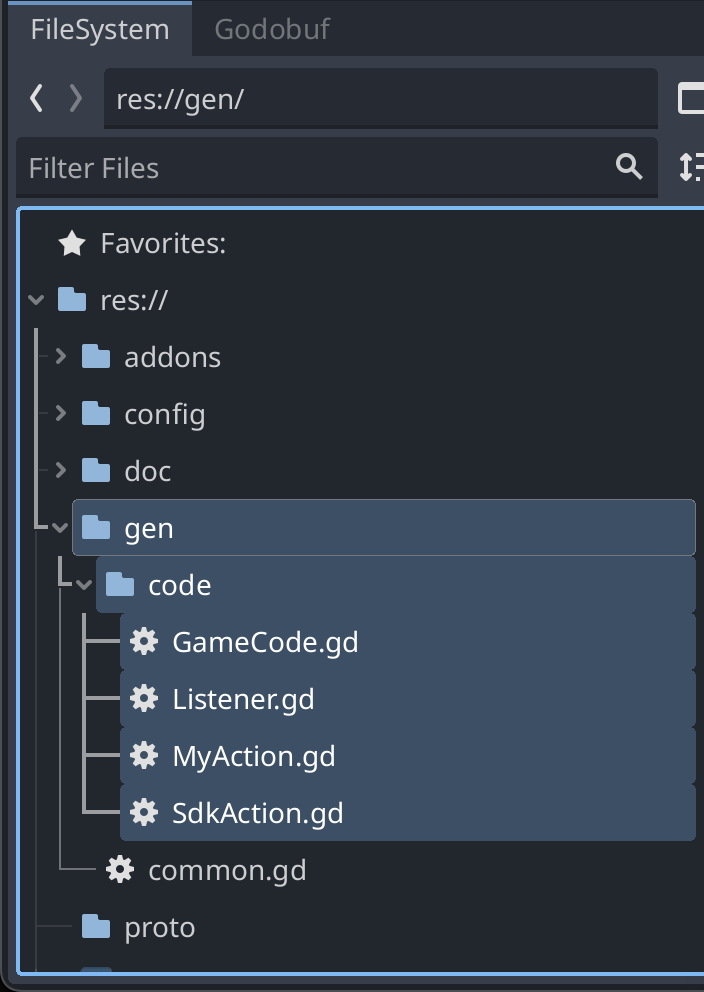

Example Source Code Directory

Remember, you do not need to write any interaction files such as action, broadcast, or error codes. These are generated by the ionet server, and you only need to focus on real business logic.

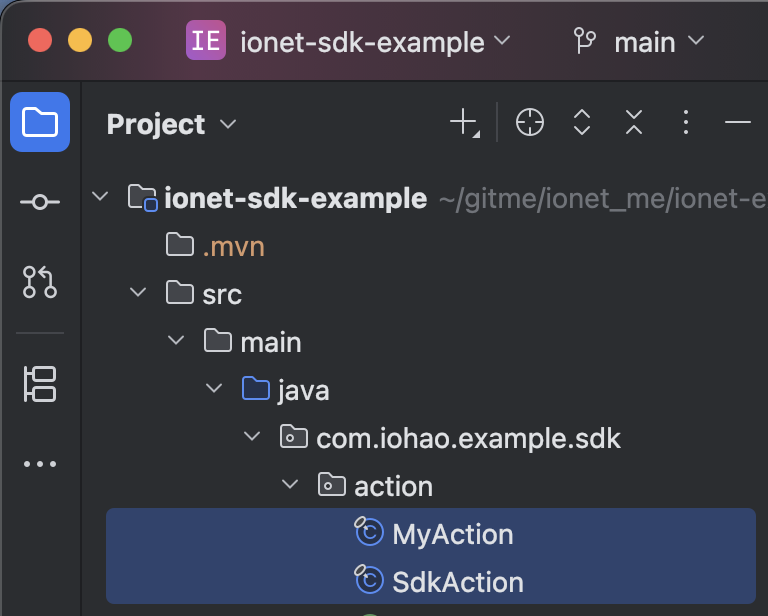

The image below shows the server source code. The GDScript source code shown above is generated by the server.

;

About Code Generation and Usage

click here

How to Generate Related PB from .proto

tip

see https://github.com/oniksan/godobuf or SDK GDScript proto

Final Notes

Remember, you do not need to write any interaction files such as action, broadcast, or error codes. These are generated by the ionet server, and you only need to focus on real business logic.
